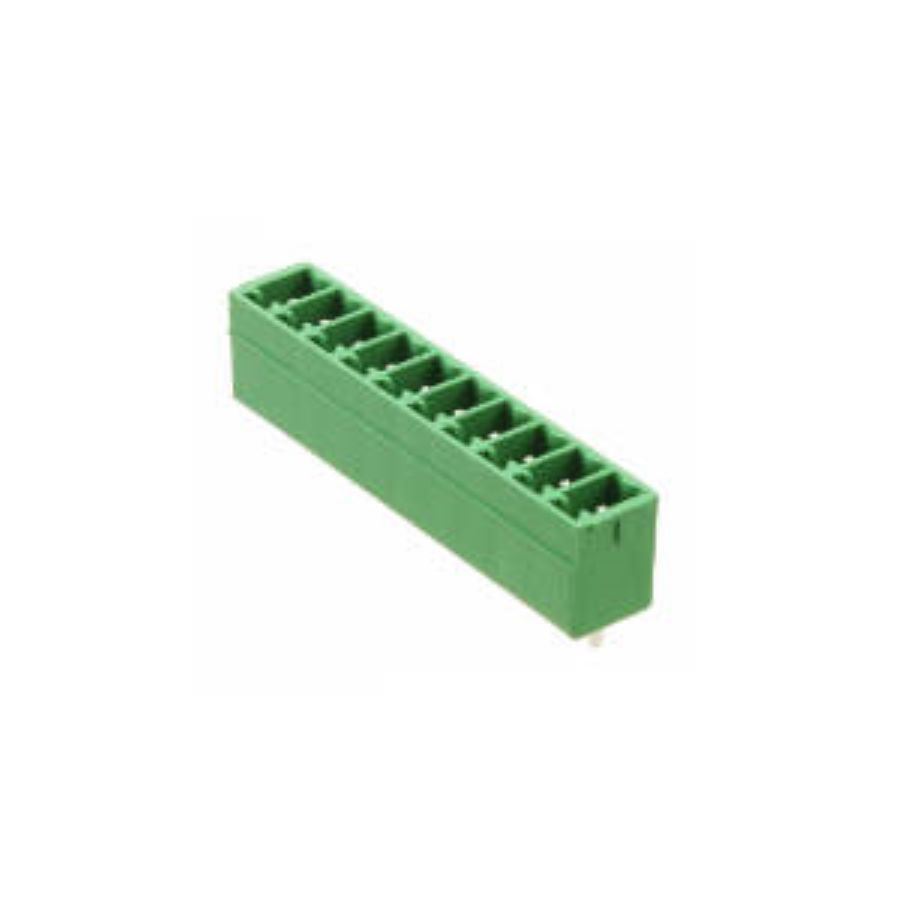

1803507
Manufacturer:
Phoenix Contact
Mfr.Part #:
1803507
Datasheet:
Description:
Terminal Blocks Through Hole 10 3.81 mm 8 A 300 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 640 mV |
| Length | 39.49 mm |
| Width | 39.49 mm |
| Termination | Solder |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 160 V |
| Height | 12.6 mm |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 7.25 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 3.81 mm |
| Voltage | 300 V |
| REACH SVHC | No SVHC |
| Weight | 113.398093 g |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Tin |
| Pitch | 3.81 mm |
| Current | 8 A |
| Current Rating | 8 A |
| Max Current Rating | 8 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Orientation | Straight |
| Color | Green |
| Gender | Male |
| Number of Contacts | 10 |
| Number of Poles | 10 |
| Connector Type | Plug |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Housing Material | Polybutylene |
| Number of Positions Per Level | 10 |
| Number of Levels | 1 |
| Housing Color | Green |
| Connection Method | Plug |
| Current Rating (IEC) | 8 A |
| Voltage Rating (IEC) | 160 V |
Stock: 153
Distributors
pcbx
pcbxUnit Price$2.03078
Ext.Price$2.03078
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.03078 | $2.03078 |
| 10 | $1.73424 | $17.34240 |
| 25 | $1.57773 | $39.44325 |
| 50 | $1.43534 | $71.76700 |
| 100 | $1.30581 | $130.58100 |
| 300 | $1.26146 | $378.43800 |
| 500 | $1.21861 | $609.30500 |
| 1000 | $1.18039 | $1180.39000 |
